Emulsion Bitumen Equipment
Detail Information
Main Technical Description
The bitumen emulsion plant features an advanced frame that is designed for asphalt production and transportation. The bitumen pipeline is fully insulated and heated using transfer oil with a precise temperature control system. The high quality stainless steel design of the tank and pipeline of the bitumen equipment protects it from corrosion.
Main Technical Parameter
Model |
ZMLR6000 Asphalt Emulsion Plant |
ZMLR10GX Modifed Asphalt Emulsion Plant |
Productivity(T/H) |
≤ 6 |
Modified asphalt ≤ 6, Normal asphalt ≤ 10 |
Emulsification tank(L) |
2500x2 |
3000x2 |
Asphalt heating tank(L) | 5000 | 6000 |
Emulsion supply pump(T/H) | 3 | 6 |
Colloid mill(T/H) | 6 | 10 |
Asphalt and Water ratio | 5:5 | 6:4 |
Control | Frequency converter | |
Dimension(mm) | 7000x2200x2300 | Unit1. 7000x2200x2200mm Unit2. 5000x2200x2200mm |
Product pictures

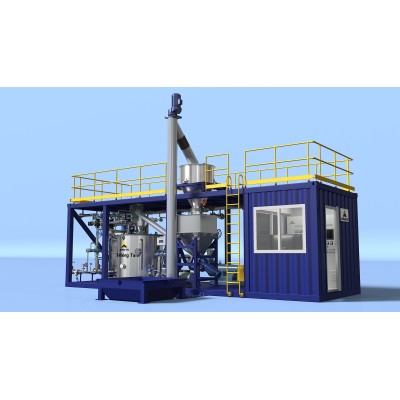

Asphalt Emulsion Plant
Modifed Asphalt Emulsion Plant
Work site
Work site
Main Parts
preparate tank
Finished product buffer tank
Tank installation
Colloid Mill
